Prefabricated substatio

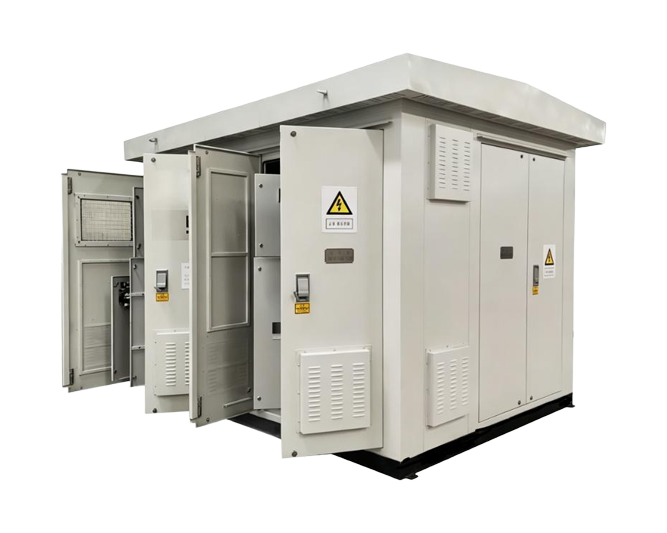

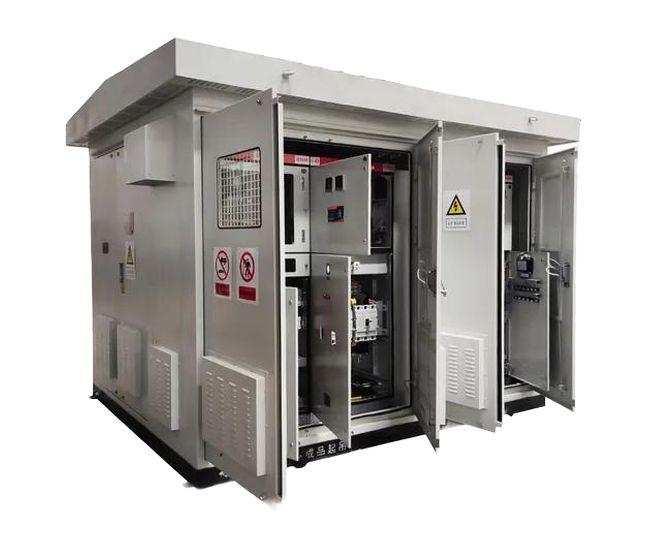

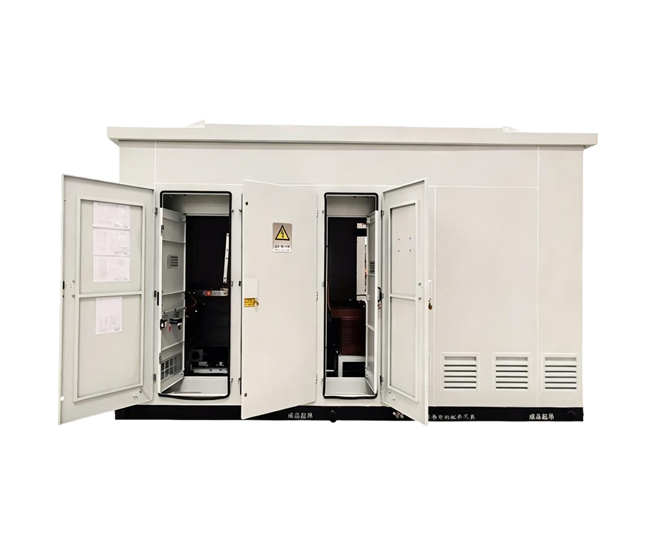

YBW-12/0.4-630 is an outdoor prefabricated substation integrating high-voltage distribution, transformer and low-voltage distribution.Suitable for 10 kV systems, it can be directly installed outdoors, featuring compact structure, small footprint, quick installation, reliable operation and easy maintenance.It is widely used in power distribution systems for residential quarters, municipal projects, industrial and mining enterprises, temporary construction and other sites.
Fully insulated and fully protected design is applied.
Complete protection performance and easy operation. Metering can be implemented on both high-voltage and low-voltage sides.
All doors of the box are equipped with lighting devices that automatically switch on and off with the opening and closing of the doors.
Technical Parameters
Door Reliable
Box doors open outward over 90° with positioning; each has handle, concealed latch and weatherproof lock.
Frame Sturdy
Frame of channel and angle steel; anti-corrosion sprayed; double-layer top cover for heat insulation.
Compact Smart
Compact, space-saving, easy transport and installation; available in I, pin and split structures.
Excellent Casing
Adopts advanced tech and new materials, sturdy, insulated, dust-proof and multi-protective with diverse materials.
Efficient Ventilation
Labyrinth plate structure, attractive, easy to disassemble, with great ventilation and heat dissipation.
Technical Parameters
Technical Specification
| Standard Code | GB/T 17467 |
| Product Model | YBW-12/0.4-630 |
| Rated Capacity | 630 kVA |
| Rated Voltage | 10 kV |
| Rated Frequency | 50 Hz |
| Enclosure Class | 10K |
| Weight | 7813 kg |
| Dimensions | 3600 mm (L) × 2200 mm (W) × 2500 mm (H) |
Application
Industrial and Mining Enterprises
Computing Power and Data Centers
Landscaping
